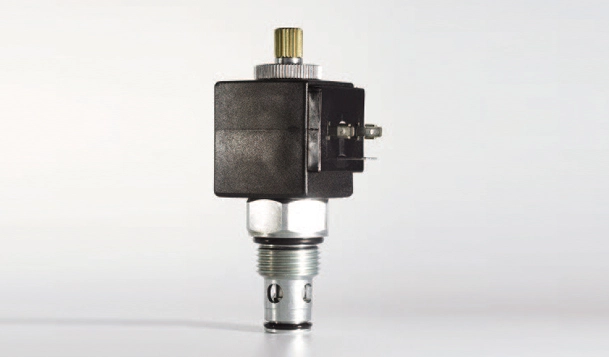

ISV10-B20 Poppet 2-Way N.C. Solenoid Valve (High Performance)

Name: ISV10-B20 Poppet 2-Way N.C. Solenoid Valve (High Performance)
Brand: Wuhu Inno Hydraulic Technology Co., Ltd.

A solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve, designed to function as a load holding or blocking valve in applications requiring low internal leakage.

Get a Quote

Specifications of ISV10-B20 Poppet 2-Way N.C. Solenoid Valve

Operating Pressure	350 bar (5100 psi)
Proof Pressure	525 bar (7600 psi)

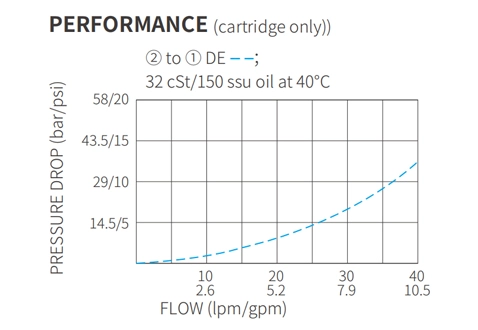

Flow	See Performance Chart
Internal Leakage	0.25 ml/min. (5 drops/minute) max. at 350 bar (5100 psi)
Temperature	-40 to 100°C
Coil Duty Rating	Continuous from 85% to 115% of nominal voltage
Response Time	First indication of change of state with 100% voltage supplied at 80% of nominal flow rating: Energized: 30 msec.; De-energized: 50 msec.
Minimum Pull-in Voltage	85% of nominal at 350 bar (5100 psi)
Fluids	Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Installation	No restrictions
Cavity	IVC10-2; See page 300

Materials

Cartridge	Weight: 0.11 kg. (0.25 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces. Seal: D type seal rings.
Standard Ported Body	Weight: 0.57 kg. (1.25 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi). Ductile iron and steel bodies available; dimensions may differ. Consult Inno.
Standard Coil	Weight: 0.27 kg. (0.60 lbs.); Unitized thermoplastic encapsulated, Class H high temperature magnetwire.
E-Coil	Weight: 0.41 kg. (0.9 lbs.); Perfect wound, fully encapsulated with rugged external metal shell; Rated up to IP69K with integral connectors.

Features of ISV10-B20 Poppet 2-Way N.C. Solenoid Valve

1. Continuous-duty rated coil.

2. Optional coil voltages and terminations.

3. Cartridges are voltage interchangeable.

4. Hardened seat for long life and low leakage.

5. Optional waterproof E-Coils rated up to IP69K.

6. Unitized, molded coil design.

7. Cost effffective cavity.

8.nEfficient wet-armature construction.

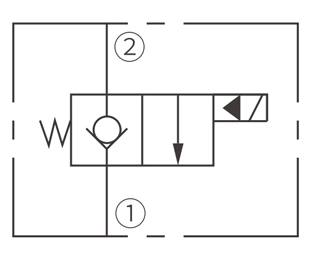

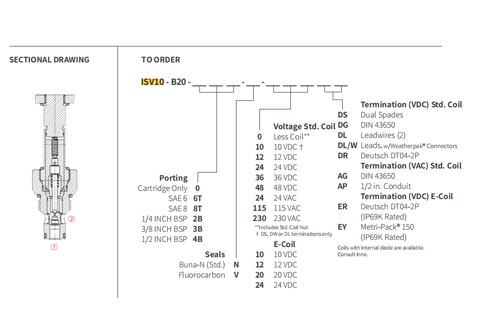

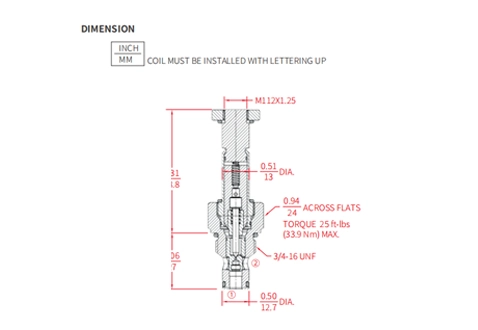

Operation Symbol of ISV10-B20 Poppet 2-Way N.C. Solenoid Valve

When de-energized, the ISV10-B20 acts as a check valve, allowing flow from ① to ②, while blocking flow from ② to ①. When energized, the cartridge's poppet lifts to open the ② to ① flow path. In this mode, flow from ① to ② is severely restricted. If this path is required, see model ISV12-22.

Operation of Manual Override Option

To override, push button in, twist counterclockwise 180°, and release. In this position, the valve will remain open. To return to normal operation, push button in, twist clockwise 180°, and release. Override will be detented in this position.
